8" x 4" Swivel Plate Caster with IronMan™ Wheel
The Ironman wheel is an exclusive compression molded compound, providing maximum strength and load capacity in a non-metal material. It can easily handle sharp temperature changes, and the sturdy design is ideal for power towing applications.
The 65/66 Series offers matching extreme duty swivel and rigid kingpinless casters with capacities up to 40,000 lb. Constructed from hot forged ASTM1045 steel with 1/2″ thick double-welded legs and a 1-1/4″ Grade 8 axle bolt. Features a forged 5/8″ thick swivel head with a 7″ precisely machined kingpinless raceway using 3/4″ hardened ball bearings. The swivel casters feature a forged 5/8" thick swivel head and a 7" precisely machined kingpinless raceway of 3/4" hardened ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 8-1/2" x 8-1/2" |
| Bolt Hole Pattern | 7" x 7" |
| Wheel Diameter | 8.0" |
| Tread Width | 4.0" |
| Wheel Name | IronMan™ |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 78-82 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 11.0" |
| Load Capacity | 8000 lb |
| Duty Rating | Extreme Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
8" x 4" Swivel Plate Caster with IronMan™ Wheel
65NX80NB8P45YY
- 8-1/2" x 8-1/2" Plate
- Sealed Precision Ball Bearing
- 8000 lb Cap.

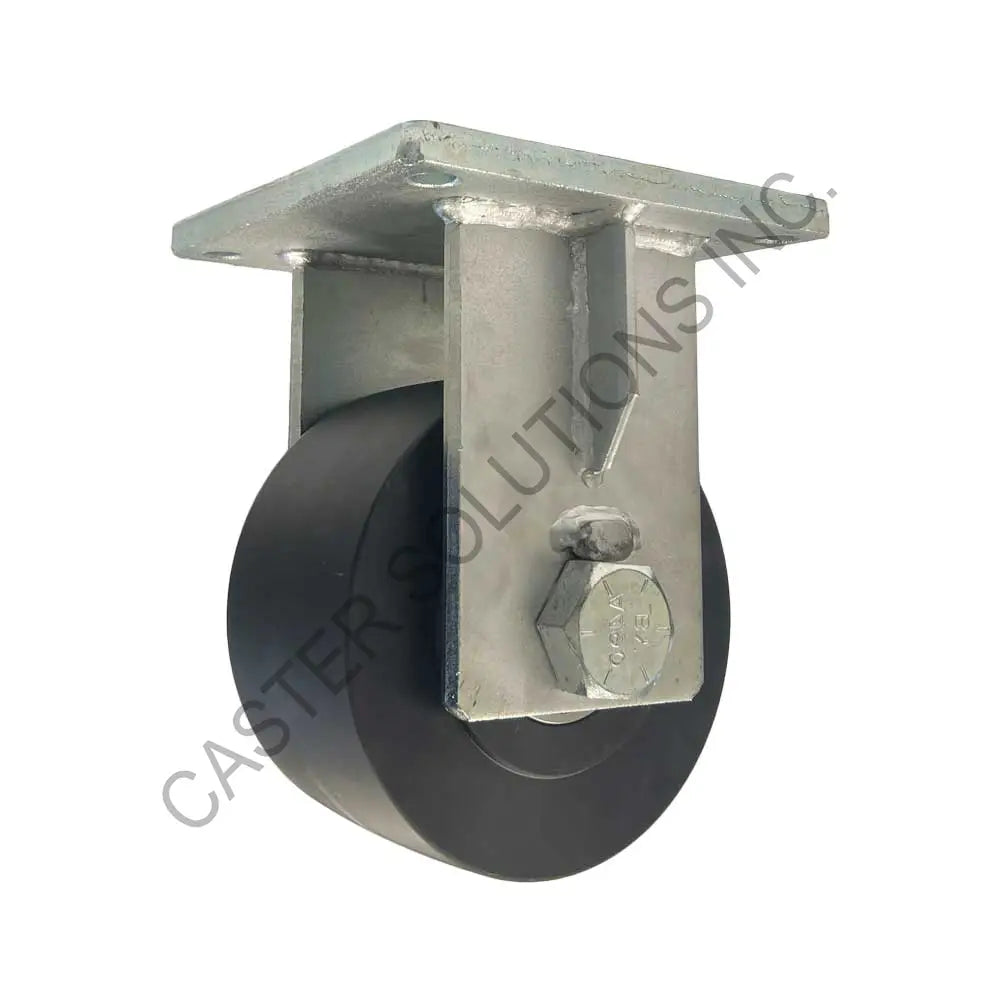

8" x 4" Rigid Plate Caster with IronMan™ Wheel
66NX80NB8P45YY
- 8-1/2" x 8-1/2" Plate
- Sealed Precision Ball Bearing
- 8000 lb Cap.
