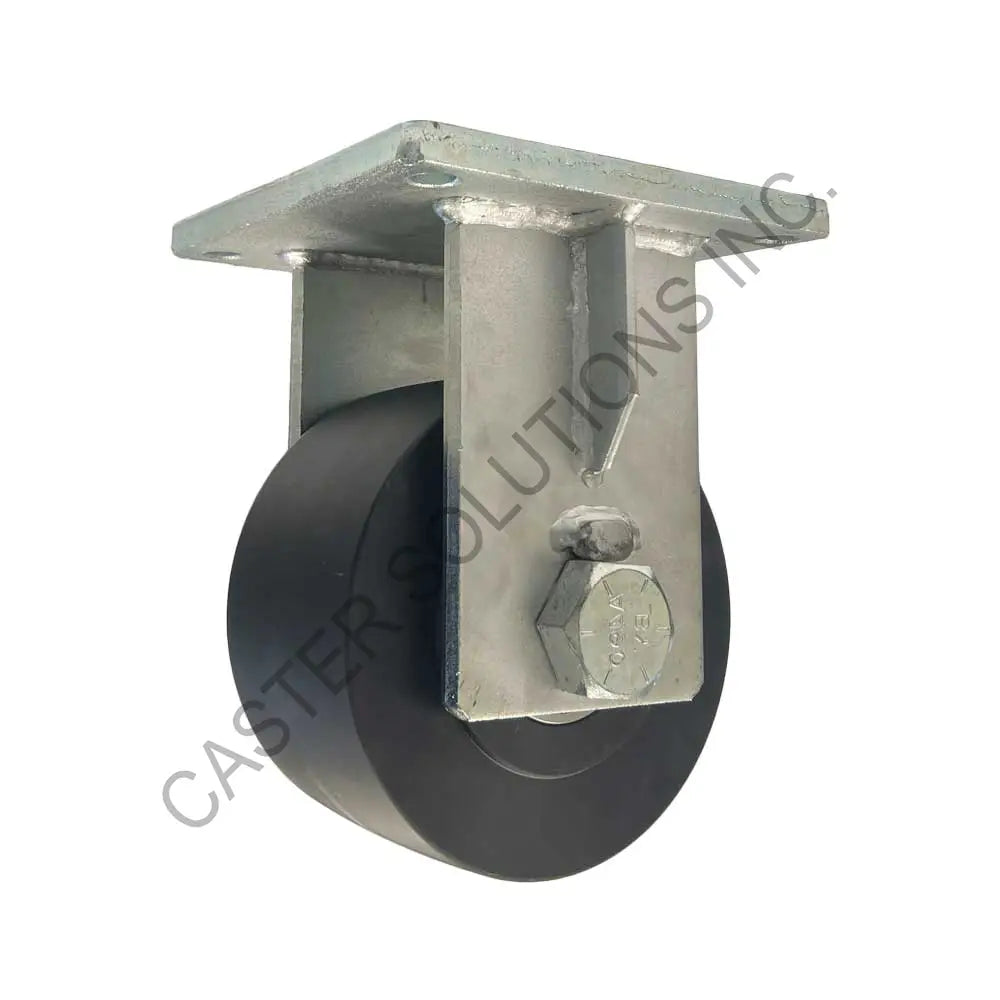

8" x 4" Rigid Plate Caster with IronMan™ Wheel
The Ironman wheel is an exclusive compression molded compound, providing maximum strength and load capacity in a non-metal material. It can easily handle sharp temperature changes, and the sturdy design is ideal for power towing applications.
The 65/66 Series offers matching extreme duty swivel and rigid kingpinless casters with capacities up to 40,000 lb. Constructed from hot forged ASTM1045 steel with 1/2″ thick double-welded legs and a 1-1/4″ Grade 8 axle bolt. Features a forged 5/8″ thick swivel head with a 7″ precisely machined kingpinless raceway using 3/4″ hardened ball bearings. The swivel casters feature a forged 5/8" thick swivel head and a 7" precisely machined kingpinless raceway of 3/4" hardened ball bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 8-1/2" x 8-1/2" |
| Bolt Hole Pattern | 7" x 7" |
| Wheel Diameter | 8.0" |
| Tread Width | 4.0" |
| Wheel Name | IronMan™ |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 78-82 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 11.0" |
| Load Capacity | 8000 lb |
| Duty Rating | Extreme Duty |
